Shine Decor 120V LED neon rope light Hard-Wire install manual

1. CONTENTS

1. Neon rope light hard-wire warning
2. Understanding LED hard-wiring
3. Understanding a bridge rectifier
4. Shine-Decor 120V rope lights series
5. Indoor hard-wiring
6. Outdoor hard-wiring

Note: PDF Shine Decor LED strip hard-wire install manual check here

Shine Decor wall dimmer switch is recommended

2. Led neon rope light hard-wiring WARNING

• Hardwiring will void the manufacturer's warranty and product liability.
• Hardwiring will void the ETL certification.
• All electrical wiring must comply with local codes, ordinances, and the National Electrical Code.
• All electrical wiring must be performed by a licensed electrician to ensure safety.
• GFCI (Ground Fault Circuit Interrupter) protection must be provided for wet locations and outdoor circuits. Electrical receptacles with built-in GFCI protection are available.
• Use only outdoor-rated extension cords marked as type SW, SOW, STW, STOW, SJW, SJOW, SJTW, or SJTOW.

3. UNDERSTANDING LED HARDWIRING

Can Shine Decor 120V LED Strip Lights Be Hardwired?

All Shine Decor 120V LED strip lights come with a fused plug for convenient setup, enhanced portability, and ETL-certified safety.

While it is technically possible to convert these lights for direct hardwiring into a circuit, please note that this modification requires removing the cord plug. Altering plug-in devices for hardwired installation violates Electrical Code regulations. Customers who choose to hardware Shine Decor LED rope light assume full responsibility for any resulting issues.

Why Hardwire LED Strip Lights?

Plugable strip lights are easy to set up, while hardwired lights conceal distracting cables. Hard-wiring LED strip lights enables you to control the lights with a wall switch and even dim them without visible wires or plugs.

This setup allows for convenient operation, keeping the space tidy and free of clutter. Hardwiring your lighting system centralizes control, giving you enhanced flexibility in illuminating specific areas of your home or office.



Where to Hardwire 120V LED Strip Lights?

120V line voltage LED strip lights should be installed in locations that are not easily accessible to human touch. Recommended applications include ceiling lighting, above-cabinet illumination, outdoor landscape lighting, and architectural lighting.

For areas where direct human contact is likely, high-voltage strip lights are not recommended due to the increased risk of electrical shock. Prioritizing electrical safety is essential when planning lighting installations.

Important Safety Note:
Do not install 120V LED strip lights within 3 meters of a swimming pool surface.



4. UNDERSTANDING BRIDGE RECTIFIER

New Driverless Technology

• Reduces costs
• Sleek design
• Higher luminous efficacy

Old Bridge Rectifier Technology

• Converts AC to DC
• Provides stable power
• Must be retained during hardwiring

5. SHINE DECOR 120V STRIP LIGHTS SERIES

TYPE 1: Lights with Rectifier

TYPE 2: Lights without Rectifier

6. INDOOR HARDWIRING

Important Safety Instructions

• Power Off: Before commencing installation, please ensure that the electricity is turned off at the main fuse box or circuit breaker box by switching the appropriate circuit breaker to the "off" position. Ensure that supply conductors are rated for a minimum of 90 °C.
• Consultation: Engage the services of a qualified electrician to verify that the branch circuit is installed correctly. The system should be rated for 120-Volt AC.
• Compliance: All electrical connections must conform to local codes, ordinances, and the National Electrical Code.

Tools & Materials (Not Included)

• Southwire UL Listed Junction Box
• Southwire Junction Box Blank Cove
• IDEAL Orange Wire Nuts 73B
• IDEAL Wire Stripper/ Cutter
• HEYCO Cord Grip M4520 + Nut 8463
• Littlefuse SPD Module LSP05G1120PH


Hardwire-Diagram

Hardwiring Steps (Indoor)

• Punch out the knockout on the junction box. Install the strain relief bushing and secure it with the nut from inside the junction box.
• Measure and cut the power cord to the desired length. Strip the wire ends. Insert the cable through the strain relief bushing and into the junction box. Once the power cord is positioned, tighten the strain relief bushing to secure it.
• Connect the surge protection module’s three input wires to the power supply wires: black to black, white to white, and green to ground. Secure all connections with wire nuts.
• Connect the surge protection module’s two output wires to the LED strip lights: black to black and white to white. Secure all connections with wire nuts.
• Install the junction box cover plate, being careful not to pinch any wires.

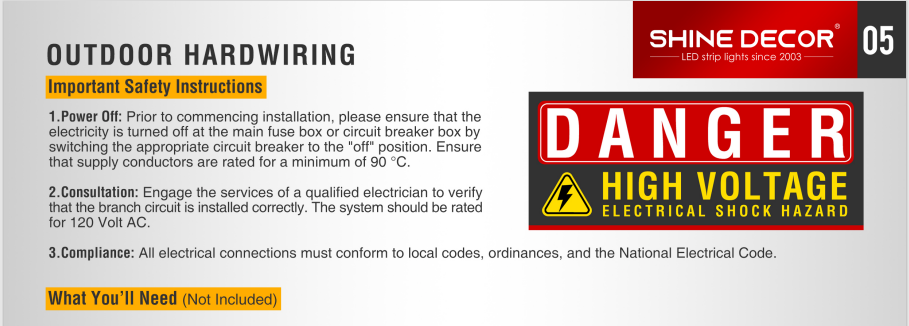

7. OUTDOOR HARDWIRING

• Safety Instructions:  same as indoor instructions, with added waterproofing requirements.

• Tools & Materials (Not Included)

1. Polycase UL Listed Outdoor Junction Box with Cover
2. DRYCONN WATERPROOF CONNECTORS
3. DRYCONN Waterproof Wire Nuts
4. IDEAL Wire Stripper/ Cutter
5. HEYCO Cord Grip M4520 + Nut 8463
6. Littelfuse SPD Module LSP05G1120PH

Hardwiring Steps (Outdoor)

Step:

1. Punch out a knockout on the waterproof junction box. Install the strain relief bushing and secure it with the nut from inside the outdoor junction box.
2. Measure and cut the power cord to the desired length. Strip the wire ends. Insert the cable through the strain relief bushing and into the junction box. Once the power cord is positioned, tighten the strain relief bushing to secure it.
3. Connect the surge protection module’s three input wires to the power supply wires: black to black, white to white, and green to ground. Secure all connections with waterproof wire nuts.
4. Connect the surge protection module’s two output wires to the LED strip lights: black to black and white to white. Secure all connections with waterproof wire nuts.
5. Install the junction box waterproof cover, being careful not to pinch any wires.
6. Install the mounting accessories and then mount the LED strip lights



8. Safety & Compliance Tips:

• Code Compliance: Use a junction box rated for your application (e.g., outdoor-rated if installed outside).
• Polarity: Ensure correct live/neutral connections to the rectifier to avoid malfunctions.
• Grounding: Always connect the ground wire for safety.
• Load Check: Confirm the circuit can handle the LED rope’s wattage (typically low, but verify with Shine Decor specs).
• Professional Help: If unsure, consult a licensed electrician.

• Code Compliance： Never conceal the junction box inside walls—it must remain accessible for inspections and maintenance



9. Note:

It is not recommended to cut the AC 120V light strip and solder the neon strip, then do hard wiring. It is very dangerous if the high-voltage light strip damages the shell. Therefore, it is recommended that customers do hard wiring directly on the power cord line.

After cutting the LED strip without the power cord. It is recommended to purchase the extra power cord accessories package and then hardwire the power cord part. Original AC 120V light strip with power cord line to be hard-wired.

By following these steps, you can safely hardwire your LED neon rope light while adhering to electrical standards.

10. FAQ: Answering Common Questions

Q1: Does the Shine Decor AC 120V Neon Rope Light need an external rectifier?

A: No. This model includes a built-in rectifier, so no additional converter is required.

Q2: Can I cut the neon rope light to fit my project?

A: Yes! Most Shine Decor neon rope lights are cuttable at marked intervals (e.g., every 12 inches). Always cut only at designated points.

Q3: How do I weatherproof outdoor installations?

A: Seal connections with waterproof wire nuts and silicone tape. Use a weatherproof junction box.

Q4: Why is my neon rope light flickering after installation?

A: Loose wiring or incorrect polarity are common causes. Double-check connections and ensure black-to-black and white-to-white.

Q5: Can I connect multiple neon rope lights to one circuit?

A: Yes, if the total wattage doesn’t exceed the circuit’s capacity. Calculate: Total watts = Number of lights × watts per foot × length.

11. Troubleshooting Common Issues

Problem	Likely Cause	Solution
The light won’t turn on	Loose connection or no power	Recheck wires and the circuit breaker
Flickering	Polarity reversed	Swap black/white connections
Overheating	Overloaded circuit	Reduce load or upgrade wiring
Partial illumination	Voltage drop over long runs	Shorten the run or use a thicker wire





12. Conclusion

• Hard wiring the Shine Decor AC120V LED Neon Rope Light is a straightforward process, thanks to its integrated rectifier and durable design. By following these steps, you’ll achieve a sleek, professional, safe, and long-lasting installation. Perfect for DIYers and pros alike, this guide ensures your lighting project shines bright without hiccups.
• Final Reminder: Always prioritize safety and compliance with local codes. When in doubt, seek professional assistance.
• Hard-wired Shine Decor neon rope light
• Caption: A seamless, hard-wired Shine Decor AC120V LED neon rope light installation.
